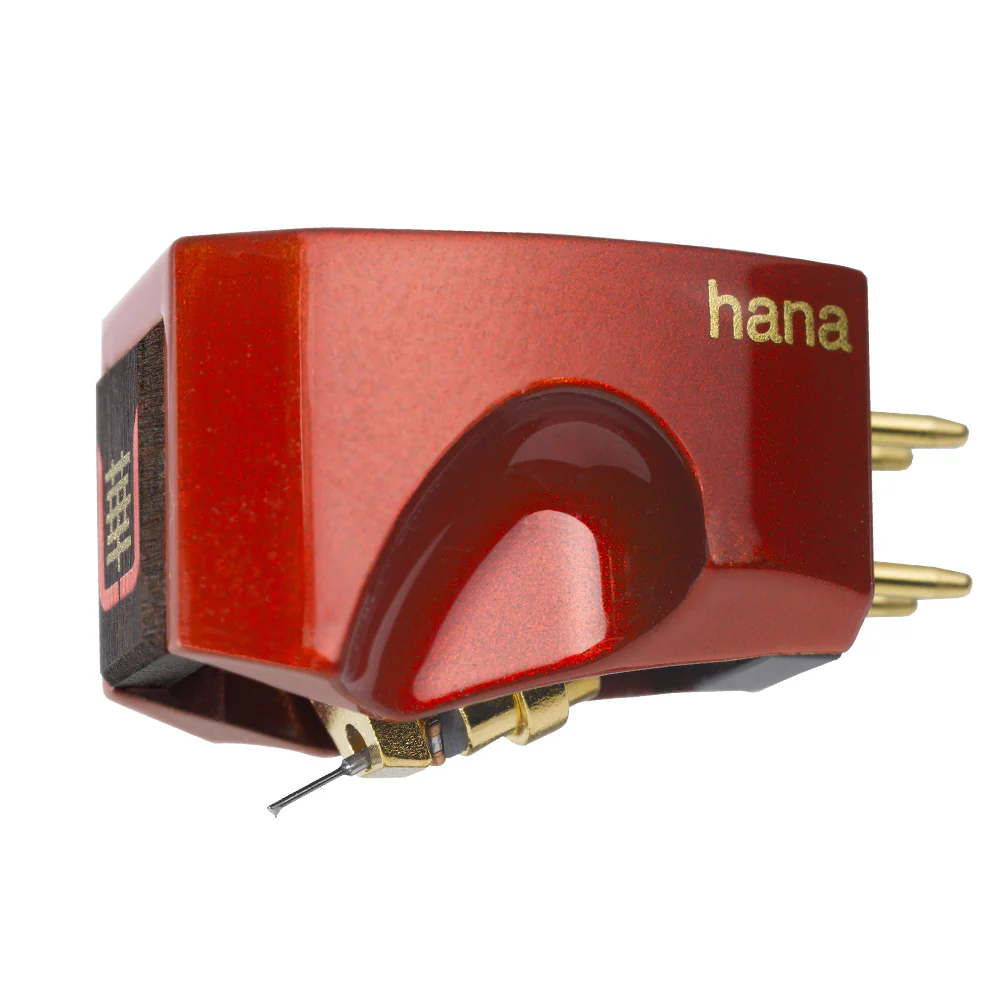

HANA UR Unami RED MC Cartridge Low Output
The HANA-Umami Red high-end moving coil cartridge combines brilliant materials and classic Japanese techniques with modern audio engineering. All the major parts in a HANA-Umami Red are manufactured in house by Excel Sound with its rich history spanning more than 50 years. Excel’ s highly trained craftsmen skill-fully hand made the HANA Umami Red ensuring an intensely musical experience furthering the HANA “Brilliant and Gorgeous” sound quality.
| Body | Material: Duralumin (A7075), Ebony Wood Finish: Gloss Urushi Lacquer/ Red |
| Cantilever Assembly | Cantilever: Boron Stylus: Microline Nude Diamond Armature Material: Permalloy Armature Shape: Square |
| Magnetic Circuit | Parts Material: Pure Iron Magnet: Samarium Cobalt Terminal Plate: PEEK (Polyether Ether Ketone) Terminal Pin: 24K Gold Plated |
| Coil | Coil Impedance: 6 O/1KHz Output: 0.4mv/1KHz Coil Wire Material: High Purity Copper Terminating Impedance: > 60 O |
| Treatment | Cryo-genic |
| Specification | Frequency Response: 10-50,000Hz Output Balance: 0.5dB/1KHz Channel Separation: >30dB/1KHz Tracking Force Weight: 2g Trackability: 70µm/2g Dynamic Compliance: 10 x 10(-6) cm/dyne (100Hz) Estimated: 16 x 10(-6) cm/dyne (10Hz) Cartridge Weight: 10.5g |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
HANA UR Unami RED MC Cartridge Low Output
HANA UR Unami RED MC Cartridge Low Output
The HANA-Umami Red high-end moving coil cartridge combines brilliant materials and classic Japanese techniques with modern audio engineering. All the major parts in a HANA-Umami Red are manufactured in house by Excel Sound with its rich history spanning more than 50 years. Excel’ s highly trained craftsmen skill-fully hand made the HANA Umami Red ensuring an intensely musical experience furthering the HANA “Brilliant and Gorgeous” sound quality.
| Body | Material: Duralumin (A7075), Ebony Wood Finish: Gloss Urushi Lacquer/ Red |
| Cantilever Assembly | Cantilever: Boron Stylus: Microline Nude Diamond Armature Material: Permalloy Armature Shape: Square |
| Magnetic Circuit | Parts Material: Pure Iron Magnet: Samarium Cobalt Terminal Plate: PEEK (Polyether Ether Ketone) Terminal Pin: 24K Gold Plated |
| Coil | Coil Impedance: 6 O/1KHz Output: 0.4mv/1KHz Coil Wire Material: High Purity Copper Terminating Impedance: > 60 O |
| Treatment | Cryo-genic |
| Specification | Frequency Response: 10-50,000Hz Output Balance: 0.5dB/1KHz Channel Separation: >30dB/1KHz Tracking Force Weight: 2g Trackability: 70µm/2g Dynamic Compliance: 10 x 10(-6) cm/dyne (100Hz) Estimated: 16 x 10(-6) cm/dyne (10Hz) Cartridge Weight: 10.5g |
Original: $4,658.21
-70%$4,658.21
$1,397.46Product Information
